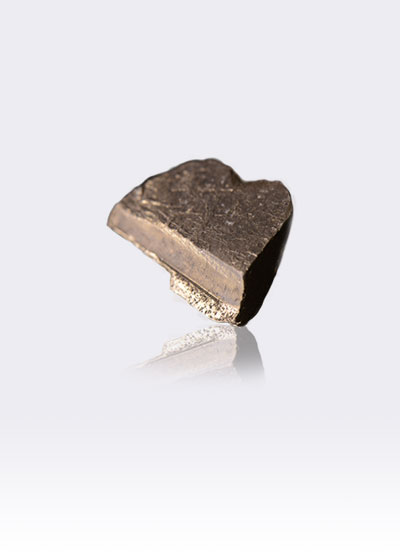

Ytterbium Metal

Products

Home / Product / Rare Earth Metals / Ytterbium Metal

Ytterbium, atomic no. 70, symbol Yb, weight at 173.04, is being applied to numerous fiber amplifier and fiber optic technologies and in various lasing applications. It has a single dominant absorption band at 985 in the infra-red making it useful in silicon photocells to directly convert radiant energy to electricity. Ytterbium metal increases its electrical resistance when subjected to very high stresses. This property is used in stress gauges for monitoring ground deformations from earthquakes and nuclear explosions. It is also used as in thermal barrier system bond coatings on nickel, iron and other transitional metal alloy substrates.

Available products

Product CAS	7440-64-4
Chemical Formula	Yb
Main applications	Additive; Electronic industry

Metal analysis

Standard Specifications
Product Code
Grade	99.99%	99.99%	99.9%	99%
CHEMICAL COMPOSITION
Yb/TREM (% min.)	99.99	99.99	99.9	99
TREM (% min.)	99.9	99.5	99	99
Rare Earth Impurities ( in TREM, % max.)
Eu Gd Tb Dy Ho Er Tm Lu Y	0.001 0.001 0.001 0.001 0.001 0.005 0.005 0.005 0.003	0.001 0.001 0.001 0.001 0.001 0.005 0.005 0.005 0.003	0.001 0.001 0.001 0.001 0.001 0.001 0.01 0.01 0.03	Totally 1.0
Non-Rare Earth Impurities ( % max.)
Fe Si Ca Al Mg W Ta O C Cl	0.01 0.005 0.005 0.005 0.005 0.05 0.0005 0.015 0.005 0.005	0.1 0.01 0.05 0.01 0.01 0.05 0.01 0.15 0.01 0.01	0.15 0.01 0.05 0.01 0.01 0.05 0.01 0.15 0.01 0.01	0.15 0.01 0.05 0.01 0.01 0.05 0.05 0.2 0.03 0.02

Discription

Ytterbium Oxide is white powder. As an activator in phosphor in calculator bubble domain and electronic industry etc.

Packing

In plastic woven bag with inner double PVC bags of 500kg net each, as well as according to customers' requirements.
